Kyocera無線藍牙晶體,CX1612DB輕薄型晶振,CX1612DB48000D0FPJC1，尺寸1.6x1.2mm，頻率48MHZ，日本進口晶振，進口京瓷晶體，京瓷石英晶振，石英SMD晶體，無源貼片晶振，石英晶體諧振器，水晶振動子，1612mm小尺寸晶振，輕薄型晶振，無鉛環保晶振，數碼電子晶振，無源晶振，SMD晶振，石英晶振，低損耗晶振，低功耗晶振，低耗能晶振，高質量晶振，高精度晶振，移動通信晶振，無線藍牙晶振，網絡設備晶振，影音系統晶振，小型設備晶振，便攜式設備晶振，具有高精度高質量的特點。

貼片晶振產品很適合用于移動通信、藍牙®、無線LAN，網絡設備，影音系統，小型設備，便攜式設備等領域。Kyocera無線藍牙晶體,CX1612DB輕薄型晶振,CX1612DB48000D0FPJC1.

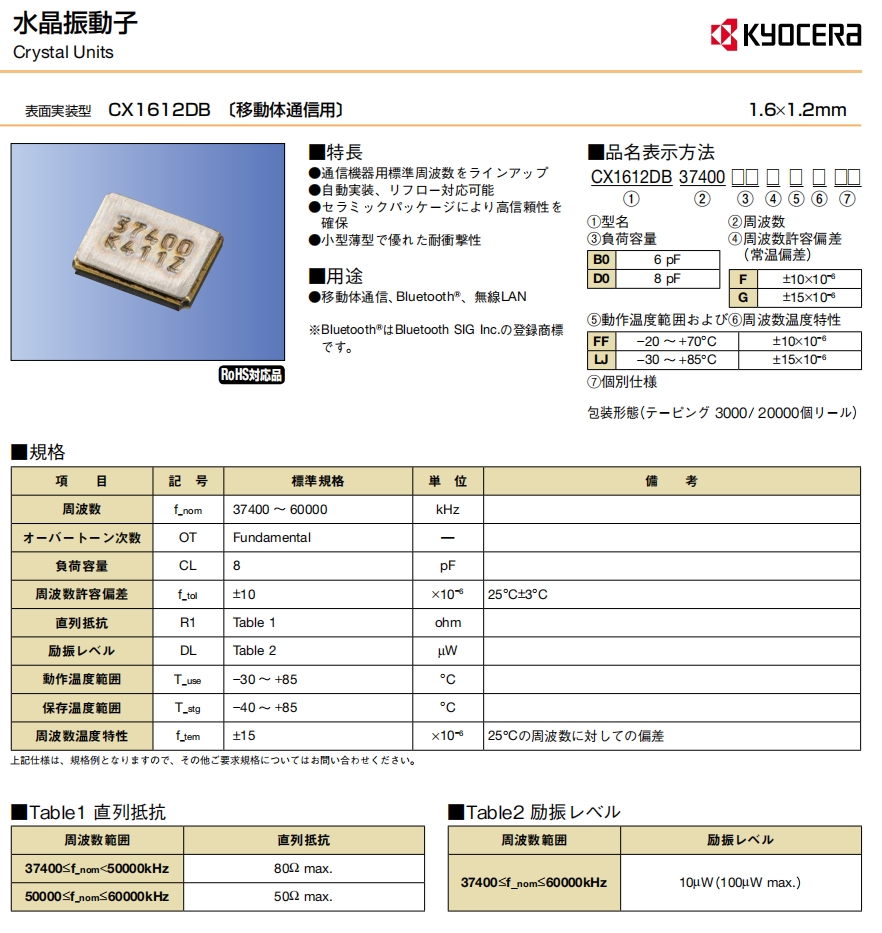

Kyocera無線藍牙晶體,CX1612DB輕薄型晶振,CX1612DB48000D0FPJC1 參數表

項目

記號

標準規格

単位

備注

頻率

f_nom

48.000

MHz

過音階

Fundamental

―

負載容量

頻率容許偏差

f_tol

±10

×10−6

25°C±3°C

串聯電阻

Table 1

ohm

激勵水平

Table 2

工作溫度范圍

T_use

−30~ +85

°C

保存溫度范圍

T_stg

−40~ +85

°C

頻率溫度特性

f_tem

±15

×10−6

相對于25°C頻率的偏差

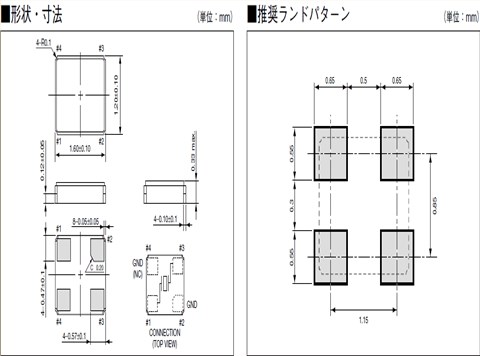

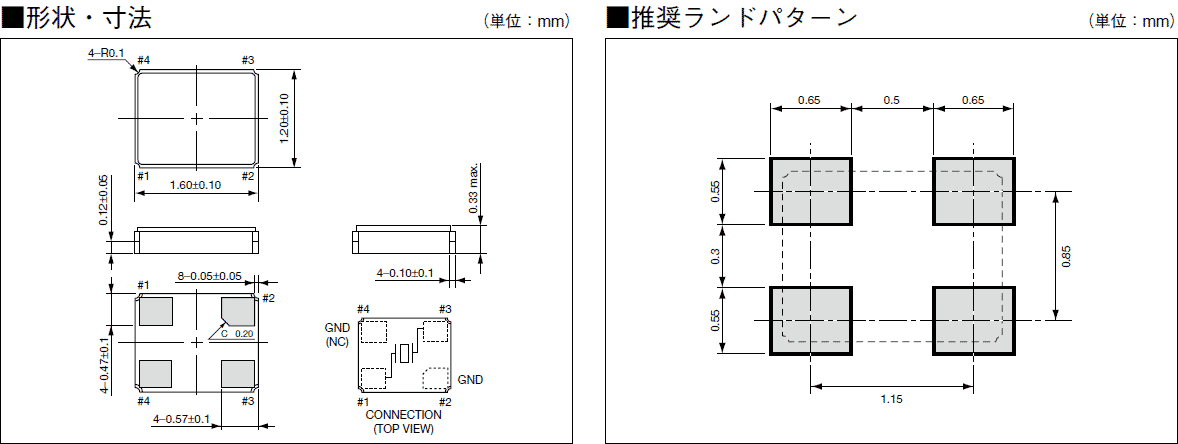

Kyocera無線藍牙晶體,CX1612DB輕薄型晶振,CX1612DB48000D0FPJC1 尺寸圖

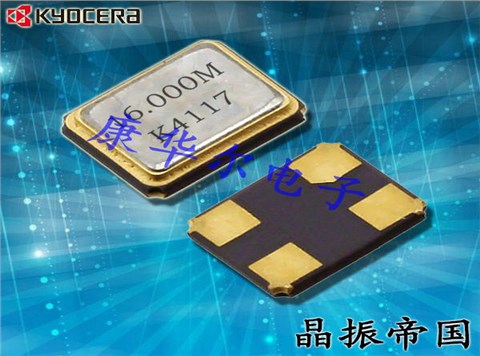

Kyocera無線藍牙晶體,CX1612DB輕薄型晶振,CX1612DB48000D0FPJC1

石英晶體產品特點：

列出通信設備用標準頻率

可自動安裝、回流

通過陶瓷封裝提高可靠性確保

小型薄型且優異的耐沖擊性

Manufacturer Part Number原廠編碼	晶振廠家	Series型號	Type 系列	Frequency	Operating Temperature工作溫度
CX2016DB27120B0HLLC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27.12MHz	-30°C ~ 85°C
CX2016DB19200H0KFQC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-20°C ~ 70°C
CX2016DB38400C0WPLA2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX2016DB38400D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB32000D0WZRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-25°C ~ 75°C
CX2016DB26000H0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB24000D0GEJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX2016DB32000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2016DB40000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2016DB48000C0WPLA2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX2016DB16000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-30°C ~ 85°C
CT2520DB19200C0FLHAF	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2016DB24000H0FLJC4	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-30°C ~ 85°C
CX2016DB25000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	25MHz	-30°C ~ 85°C
CX2016DB24576H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-30°C ~ 85°C
CX2016DB19200D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2016DB20000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	20MHz	-30°C ~ 85°C
CX2016DB19200H0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX2016DB48000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB16000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-30°C ~ 85°C
CX2016DB25000D0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	25MHz	-30°C ~ 85°C
CX2016DB32000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2016DB24000D0FLJC6	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-30°C ~ 85°C
CX2016DB27000H0FLFC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2016DB26000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB20000D0FLJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	20MHz	-30°C ~ 85°C
CX2016DB48000E0DLFA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB16000D0WZRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-25°C ~ 75°C
CX2016DB48000C0WLLA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB16000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CT2520DB26000C0FZZA1	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	26MHz	-25°C ~ 85°C
CX1612DB48000D0FPJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX2016DB32000D0WPRC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-25°C ~ 75°C
CX2016DB19200D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	19.2MHz	-40°C ~ 85°C
CX2016DB20000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	20MHz	-40°C ~ 85°C
CX2016DB24000D0GPSC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-40°C ~ 85°C
CX2016DB24576D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-30°C ~ 85°C
CX2016DB24576D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-40°C ~ 85°C
CX2016DB25000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	25MHz	-40°C ~ 85°C
CX2016DB26000D0FLJC4	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB26000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-40°C ~ 85°C
CX2016DB27000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2016DB27000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-30°C ~ 85°C
CX2016DB27000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-40°C ~ 85°C
CX2016DB30000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	30MHz	-30°C ~ 85°C
CX2016DB30000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	30MHz	-30°C ~ 85°C
CX2016DB30000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	30MHz	-40°C ~ 85°C
CX2016DB32000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-40°C ~ 85°C
CX2016DB38400D0FLJC2	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB38400H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB38400D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-40°C ~ 85°C
CX2016DB40000H0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2016DB40000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-40°C ~ 85°C
CX2016DB48000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-30°C ~ 85°C
CX2016DB48000D0GPSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX2016DB24576D0GEJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2016DB27000D0GEJCC	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX2016DB35416K0DZFA1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	35.416MHz	-10°C ~ 70°C
CX1612DB26000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX1612DB52000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	52MHz	-30°C ~ 85°C
CX2016DB35416K0HJLC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	35.416MHz	-30°C ~ 85°C
CX2016DB24576D0GEJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2016DB26000D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB27000D0GEJZ1	KYOCERA Crystal	CX2016DB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX2016DB32000D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	32MHz	-30°C ~ 85°C
CX2016DB38400D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.4MHz	-30°C ~ 85°C
CX2016DB40000D0FLJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40MHz	-30°C ~ 85°C
CX2016DB24000D0GEJZ1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX2016DB26000D0FLJC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX2016DB50000D0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	50MHz	-30°C ~ 75°C
CX2016DB31250K0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	31.25MHz	-30°C ~ 75°C
CX2016DB39062K0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	39.0625MHz	-30°C ~ 75°C
CX2016DB38880D0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	38.88MHz	-30°C ~ 75°C
CX2016DB40960D0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	40.96MHz	-30°C ~ 75°C
CX2016DB53125K0KJSC1	AVX Corp/Kyocera Corp	CX2016DB, Kyocera	MHz Crystal	53.125MHz	-30°C ~ 75°C
