SX3C-18F20EH-36MHz,FCD-Tech低電壓晶振,3225mm,36MHZ,CMOS,荷蘭進口晶振,進口有源晶振,3225mm石英振蕩器,時鐘晶體振蕩器,OSC貼片晶振,四腳有源晶振,36MHZ進口晶振,CMOS輸出晶振,尺寸3.2x2.5mm,頻率36MHZ,電壓1.8V,輸出CMOS,低電流晶振,低功耗晶振,無線通信晶振,便攜式設備晶振,數字電子晶振,儀器設備晶振.
SX3C-18F20EH-36MHz,FCD-Tech低電壓晶振,3225mm,36MHZ,CMOS特點:
HCMOS表面貼裝時鐘有源晶體振蕩器
超小型封裝
高沖擊和振動電阻率
低電流消耗
應用：無線通信，便攜式電子.
SX3C-18F20EH-36MHz,FCD-Tech低電壓晶振,3225mm,36MHZ,CMOS 參數表
| Item |
Specification 36.0 MHz CMOS |
||||||||||||
| Frequency Range | |||||||||||||
| Output Logic | |||||||||||||
| Overall Frequency Stability * | ± 20 ppm~± 100 ppm (see options) | ||||||||||||
|
Operating Temperature Range |
|||||||||||||
| Supply Voltage Vdd | +3.0V±5% | +3.3V±5% | +5.0V±5% | ||||||||||
| Supply Current Idd | 5 mA ~ 30 mA | 5 mA ~ 35 mA | 5 mA ~ 40 mA | ||||||||||
 VOL ≤ 0.1 Vdd
|
|||||||||||||
| Output Load | |||||||||||||
| Symmetry | |||||||||||||
| Rise Time / Fall TimeFr/Ff | |||||||||||||
|
Tri-state function |
open | pin #3=oscillation | |||||||||||
| pin #3=high impedance | |||||||||||||
| Start-up Time | |||||||||||||
 band )
|
|||||||||||||
| Packing Unit | 3000pcs / reel | ||||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||||||
| Customer specifications on request | |||||||||||||

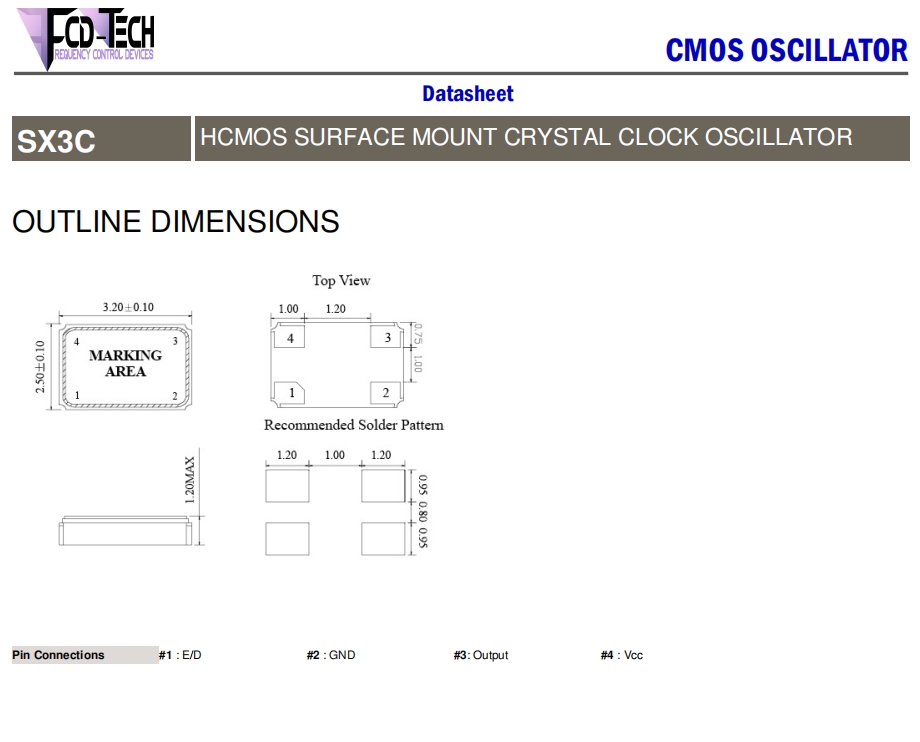

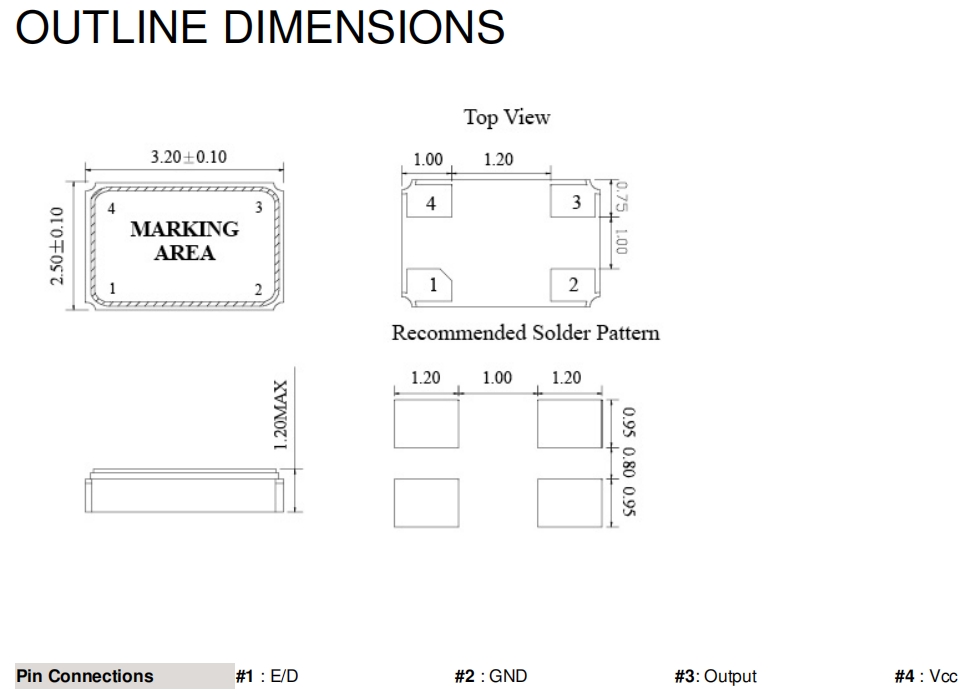

SX3C-18F20EH-36MHz,FCD-Tech低電壓晶振,3225mm,36MHZ,CMOS尺寸圖
