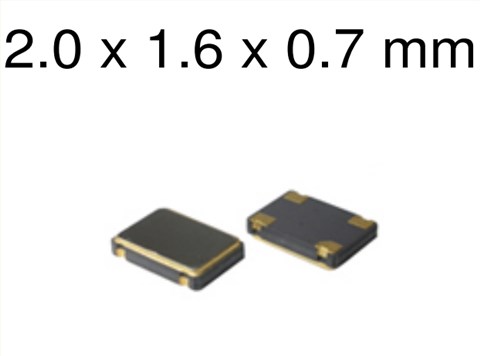

SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振蕩器,32MHZ,1.8V,荷蘭進口晶振,有源貼片晶振,石英振蕩子,時鐘晶體振蕩器,2016晶體振蕩器,32MHZ有源晶振,四腳有源晶振,尺寸2.0x1.6mm,頻率32MHZ,電壓1.8V,輸出邏輯CMOS,低電壓晶振,低損耗晶振,低相位晶振,CMOS輸出振蕩器,高性能晶振,電信設備晶振,便攜式設備晶振,數字電子晶振,測試設備晶振.
SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振蕩器,32MHZ,1.8V特點:
OSC晶振最小的行業包裝
高沖擊和振動電阻率
應用：電信、便攜式電子.

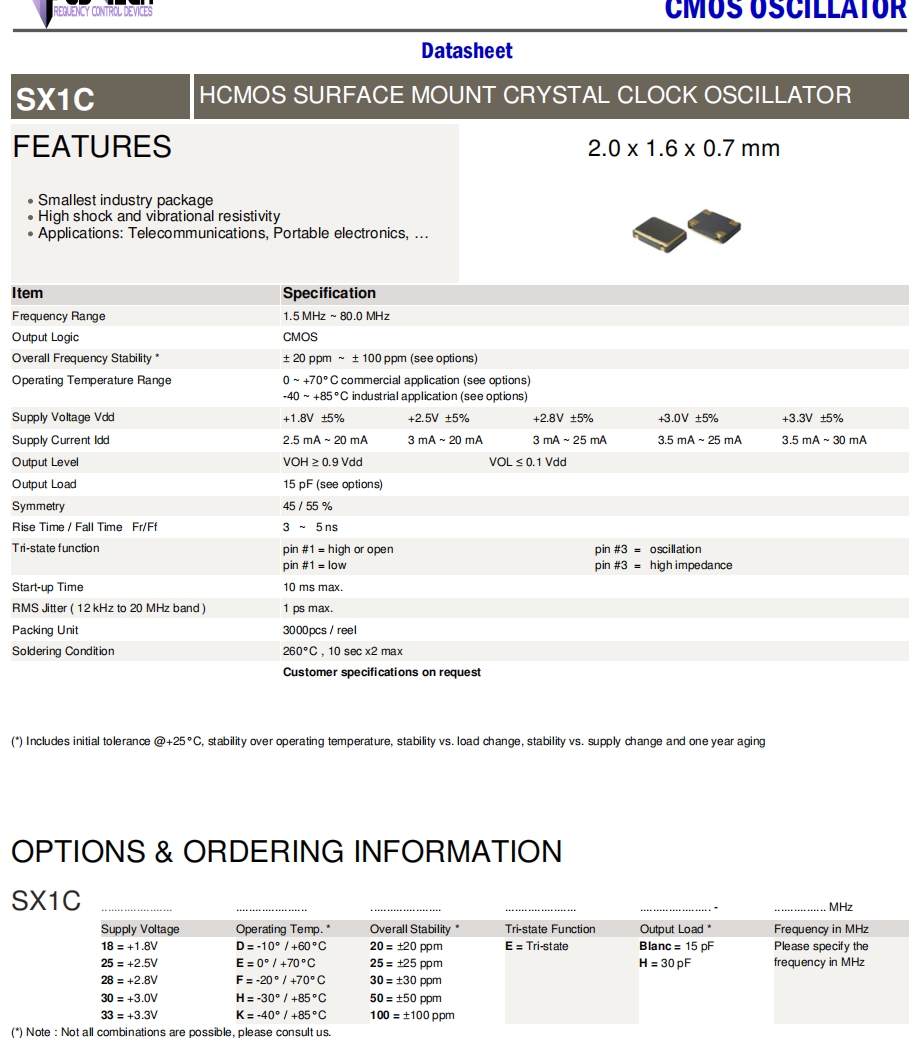

SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振蕩器,32MHZ,1.8V 參數表
| Item | Specification | |||||||||||||||
| Frequency Range | 32.0 MHz | |||||||||||||||
| Output Logic | CMOS | |||||||||||||||
| Overall Frequency Stability * | ± 20 ppm~± 100 ppm (see options) | |||||||||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | |||||||||||||||
| -40 ~ +85°C industrial application (see options) | ||||||||||||||||
| Supply Voltage Vdd | +1.8V±5%+2.5V±5% | +2.8V±5% | +3.0V±5% | +3.3V±5% | ||||||||||||
| Supply Current Idd | 2.5 mA ~ 20 mA3 mA ~ 20 mA | 3 mA ~ 25 mA | 3.5 mA ~ 25 mA | 3.5 mA ~ 30 mA | ||||||||||||
  VOL ≤ 0.1 Vdd
|
||||||||||||||||
| Output Load | 15 pF (see options) | |||||||||||||||
| Symmetry | 45 / 55 % | |||||||||||||||
| Rise Time / Fall TimeFr/Ff | 3~5 ns | |||||||||||||||
| Tri-state function | pin #1 = high or | open | pin #3=oscillation | |||||||||||||
| pin #1 = low | pin #3=high impedance | |||||||||||||||
| Start-up Time | 10 ms max. | |||||||||||||||
  band )
|
||||||||||||||||
| Packing Unit | 3000pcs / reel | |||||||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | |||||||||||||||

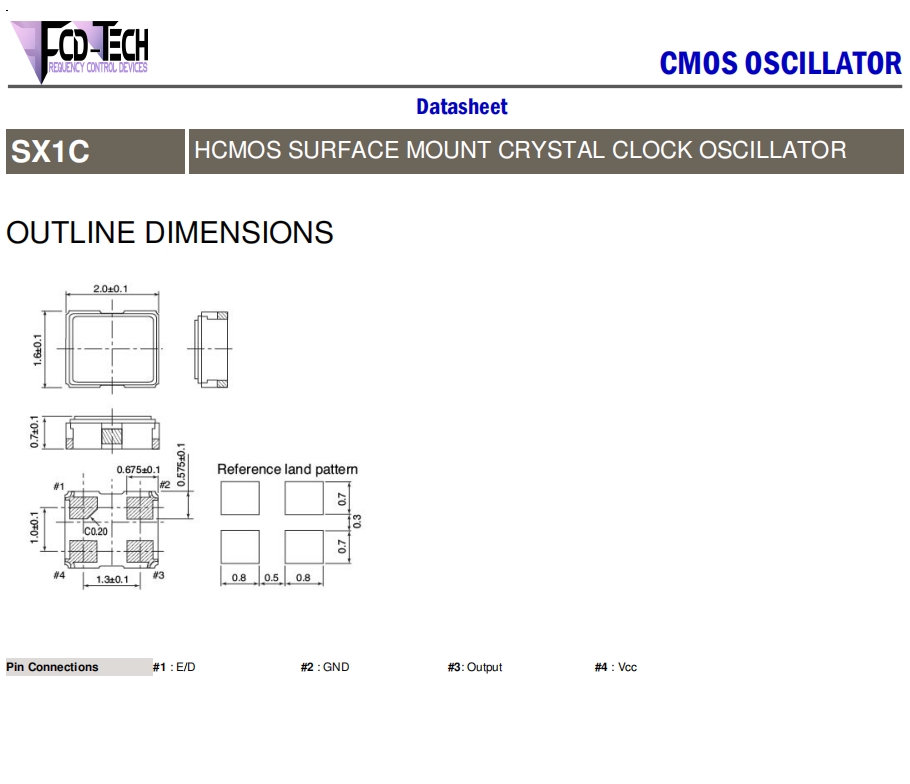

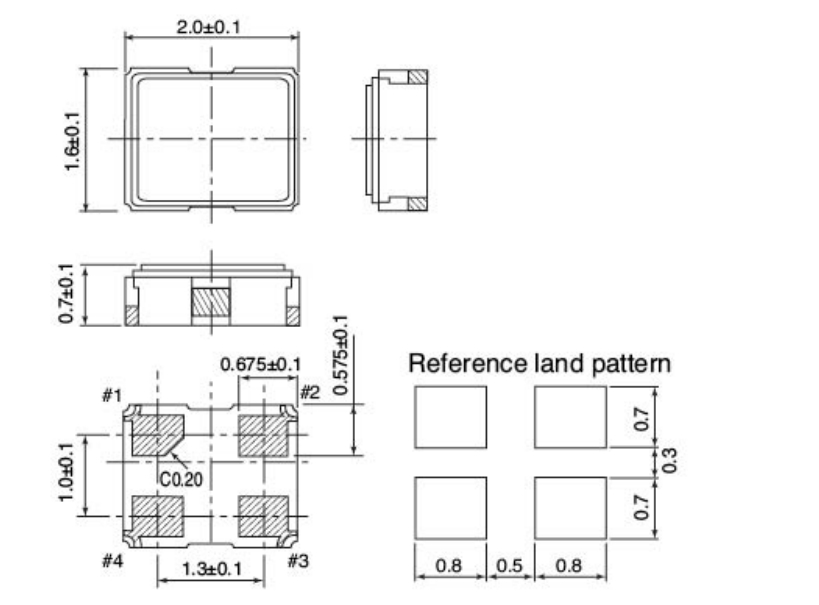

SX1C-18F20EH-32MHz,2016mm,FCD-Tech有源振蕩器,32MHZ,1.8V尺寸圖
