ELM8,ELM8-12.000MHz-10-R50-D4Y-T,3225mm,AEL小體積晶振

產品簡介

ELM8,ELM8-12.000MHz-10-R50-D4Y-T,3225mm,AEL小體積晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM8晶振，編碼為：ELM8-12.000MHz-10-R50-D4Y-T，頻率為：12.000MHz，負載：10pF，工作溫度范圍：-40℃至+85℃，精度：±30ppm，頻率穩定性：±30ppm，小體積晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，無源晶振，石英晶振，3225晶振，石英晶體諧振器，無鉛環保晶振。具有超小型，輕薄型，高品質，耐熱及耐環境等特點。被廣泛應用于：通訊設備晶振，無線藍牙晶振，智能手機晶振，平板電腦晶振，智能家居晶振應用等。

產品詳情

ELM8,ELM8-12.000MHz-10-R50-D4Y-T,3225mm,AEL小體積晶振，產品特點：

●小型尺寸：3.2x2.5mm貼片晶振
●SMD石英晶體諧振器
●公差： ±10ppm可用
●工作溫度-10°C至+60°C至-40°C至+125°C

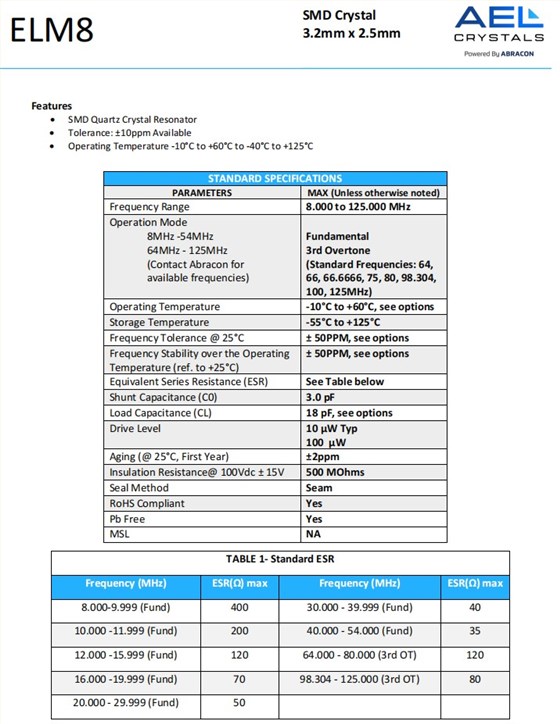

ELM8,ELM8-12.000MHz-10-R50-D4Y-T,3225mm,AEL小體積晶振,參數表

STANDARD SPECIFICATIONS
PARAMETERS						MAX (Unless otherwise noted)
Frequency Range						12.000MHz
Operation Mode 8MHz -54MHz 64MHz - 125MHz (Contact Abracon for available frequencies)						Fundamental 3rd Overtone (Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz)
Operating Temperature						-10°C to +60°C, see options
Storage Temperature						-55°C to +125°C
Frequency Tolerance @ 25°C						± 50PPM, see options
Frequency Stability over the Operating Temperature (ref. to +25°C)						± 50PPM, see options
Equivalent Series Resistance (ESR)						See Table below
Shunt Capacitance (C0)						3.0 pF
Load Capacitance (CL)						18 pF, see options
Drive Level						10 μW Typ 100 μW
Aging (@ 25°C, First Year)						±2ppm
Insulation Resistance@ 100Vdc ± 15V						500 MOhms
Seal Method						Seam
RoHS Compliant						Yes
Pb Free						Yes
MSL						NA

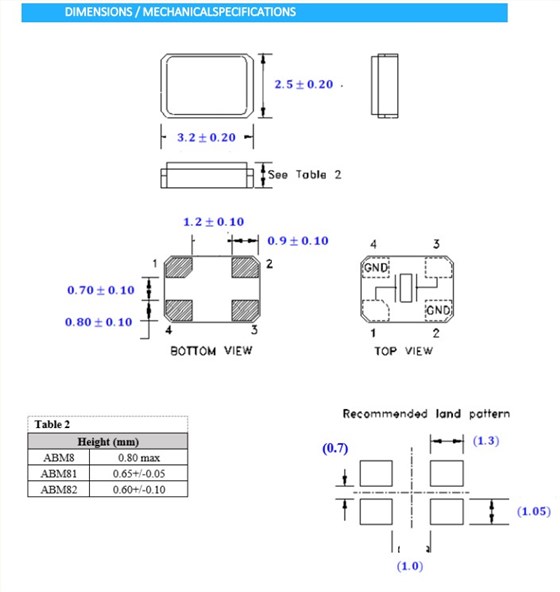

ELM8,ELM8-12.000MHz-10-R50-D4Y-T,3225mm,AEL小體積晶振,尺寸圖
