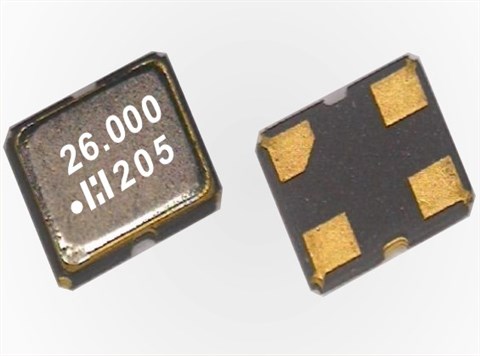

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振

產品簡介

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振，臺灣Hosonic晶振，鴻星晶振，型號：D2SX系列貼片晶振，編碼為：D2SX40E000001E，頻率為：40MHz，電源電壓：3.3V，頻率穩定性：±25ppm，OSC振蕩器，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：2.5x2.0x0.9mm，四腳貼片晶振，有源晶振，2520石英晶振，石英晶體振蕩器，SMD晶振，具有超小型晶振，輕薄型晶振，高可靠性晶振，高品質晶振，耐熱及耐環境等特點。應用程序：家庭安全設備，通訊設備，無線網絡晶振，藍牙模塊晶振，導航晶振，醫療設備，數碼電子等應用。

產品詳情

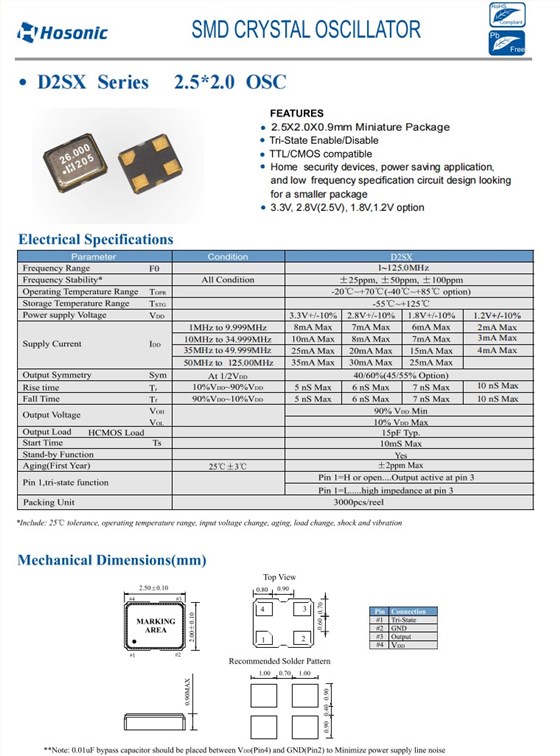

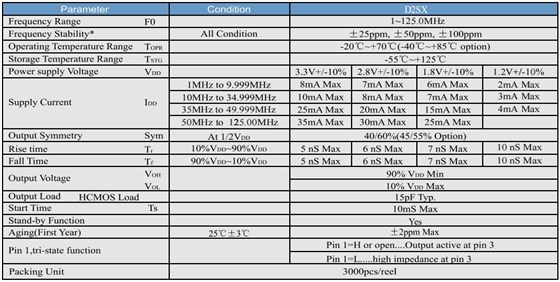

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振,參數表

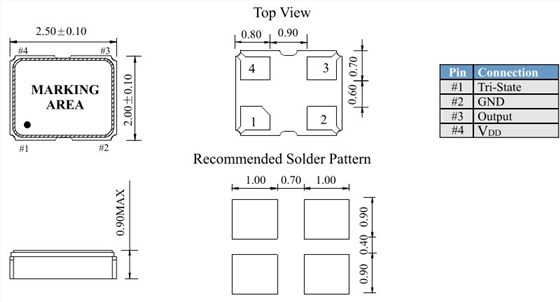

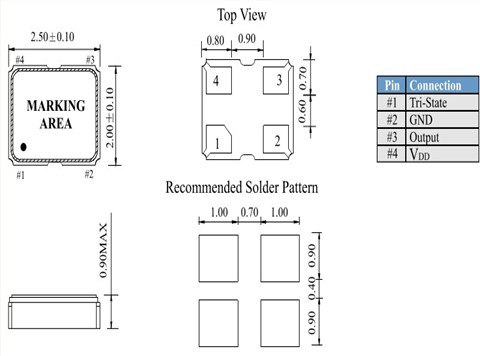

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic導航儀晶振,尺寸圖

產品編碼	小體積貼片晶振	系列	頻率	電源電壓	頻率穩定性
D3SX00327000ME	Hosonic鴻星	D3SX	32.768 kHz	1.8V	±25ppm
D2SX003270004E	Hosonic鴻星	D2SX	32.768 kHz	1.8V	±25ppm
D7SX4E000000UE	Hosonic鴻星	D7SX	4MHz	3.3V	±50ppm
D2SX25E00000BE	Hosonic鴻星	D2SX	25MHz	3.3V	±25ppm
D3SX38E0X0003E	Hosonic鴻星	D3SX	38.4MHz	3.3V	±25ppm
D3SX12E0X000BE	Hosonic鴻星	D3SX	12.288MHz	1.8V	15pF
D3SX12E00000HE	Hosonic鴻星	D3SX	12MHz	3.3V	±25ppm
D3SX24E000001E	Hosonic鴻星	D3SX	24MHz	3.3V	±25ppm
D3SX100E00007E	Hosonic鴻星	D3SX	100MHZ	3.3V	±30ppm
D3SX50E000002E	Hosonic鴻星	D3SX	50MHZ	3.3V	±30ppm
D3SX20E000001E	Hosonic鴻星	D3SX	20MHz	3.3V	±25ppm
D2SX100E00003E	Hosonic鴻星	D2SX	100MHz	1.8V	±25ppm
D2SX50E000009E	Hosonic鴻星	D2SX	50MHz	3.3V	±25ppm
D3SX40E00000EE	Hosonic鴻星	D3SX	40MHz	3.3V	±25ppm
D2SX40E000001E	Hosonic鴻星	D2SX	40MHz	3.3V	±25ppm
D3SX25E000006E	Hosonic鴻星	D3SX	25MHz	3.3V	±25ppm
D2SX20E000000E	Hosonic鴻星	D2SX	20MHZ	3.3V	±30ppm
D36B62.5000NNS	Hosonic鴻星	HXO-36	62.5MHz	3.3V	±50ppm
D36B3.68640NNS	Hosonic鴻星	HXO-36	3.6864MHz	3.3V	±50ppm
D36B4.00000NNS	Hosonic鴻星	HXO-36	4MHz	3.3V	±50ppm
D36B6.00000NNS	Hosonic鴻星	HXO-36	6MHz	3.3V	±50ppm
D36B8.00000NNS	Hosonic鴻星	HXO-36	8MHz	3.3V	±50ppm
D36B10.0000NNS	Hosonic鴻星	HXO-36	10MHz	3.3V	±50ppm
D36B12.0000NNS	Hosonic鴻星	HXO-36	12MHz	3.3V	±50ppm
D36B14.3181NNS	Hosonic鴻星	HXO-36	14.3181MHz	3.3V	±50ppm
D36B14.7456NNS	Hosonic鴻星	HXO-36	14.7456MHz	3.3V	±50ppm
D36B16.0000NNS	Hosonic鴻星	HXO-36	16MHz	3.3V	±50ppm
D36B18.4320NNS	Hosonic鴻星	HXO-36	18.432MHz	3.3V	±50ppm
D36B20.0000NNS	Hosonic鴻星	HXO-36	20MHz	3.3V	±50ppm
D36B24.0000NNS	Hosonic鴻星	HXO-36	24MHz	3.3V	±50ppm
D36B24.5760NNS	Hosonic鴻星	HXO-36	24.576MHz	3.3V	±50ppm
D36A25.0000WTS	有源晶振	HXO-36	25MHz	3.3V	±50ppm
D36B27.0000NNS	Hosonic鴻星	HXO-36	27MHz	3.3V	±50ppm
D36B33.0000NNS	Hosonic鴻星	HXO-36	30MHz	3.3V	±50ppm
D36B33.3330NNS	Hosonic鴻星	HXO-36	33.333MHz	3.3V	±50ppm
D36B48.0000NNS	Hosonic鴻星	HXO-36	48MHz	3.3V	±50ppm
D36B50.0000NNS	Hosonic鴻星	HXO-36	50MHz	3.3V	±50ppm
D36B66.0000NNS	Hosonic鴻星	HXO-36	66MHz	3.3V	±50ppm
D36B100.000NNS	Hosonic鴻星	D36B	100MHz	3.3V	±50ppm
D36B125.0000NTS	Hosonic鴻星	D36B	125MHz	2.5V	±50ppm
D56A25.0000WTS	Hosonic鴻星	HXO-56	25 MHz	3.3V	±50ppm
D56A30.0000MTS	Hosonic鴻星	HXO-56	30Mhz	3.3V	±50ppm
D56B12.0000NNS	Hosonic鴻星	HXO-56	12 MHz	3.3V	±50ppm
D56B14.7456NNS	Hosonic鴻星	HXO-56	14.745MHz	3.3V	±50ppm
D56B16.0000NNS	Hosonic鴻星	HXO-56	16 MHz	3.3V	±50ppm
D56B24.0000NNS	Hosonic鴻星	HXO-56	24 MHz	3.3V	±50ppm
D56B25.0000NNS	Hosonic鴻星	HXO-56	25 MHz	3.3V	±50ppm
D56B33.0000WTS	Hosonic鴻星	HXO-56	33MHz	3.3V	±50ppm
D56B50.0000NNS	Hosonic鴻星	HXO-56	50 MHz	3.3V	±50ppm
DSCB4.91520NNS	Hosonic鴻星	HXO-SC	4.9152MHZ	3.3V	±50ppm
DSCB14.3181NNS	Hosonic鴻星	HXO-SC	14.3181MHZ	3.3V	±50ppm
DSCB20.0000NNS	Hosonic鴻星	HXO-SC	20 MHz	3.3V	±50ppm
DSCB24.0000NNS	Hosonic鴻星	HXO-SC	24 MHz	3.3V	±50ppm
DSCB25.0000NNS	Hosonic鴻星	HXO-SC	25 MHz	3.3V	±50ppm
DSCB27.0000NNS	Hosonic鴻星	HXO-SC	27 MHz	3.3V	±50ppm
