當前位置：首頁 » 歐美晶振 » 日蝕晶振 » EC2745ETTS-100.000M TR,Ecliptek時鐘振蕩器,7050mm無線晶振

prevnext

EC2745ETTS-100.000M TR,Ecliptek時鐘振蕩器,7050mm無線晶振

頻率：100.000MHz

尺寸：7.0x5.0x1.6mm

EC2745ETTS-100.000M TR,Ecliptek時鐘振蕩器,7050mm無線晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：EC27系列，編碼為：EC2745ETTS-100.000M TR石英晶振，頻率：100.000MHz，電壓：2.5V，工作溫度范圍：-40℃至+85℃，CMOS輸出晶振，頻率穩定性：±50ppm，小體積晶振尺寸：7.0x5.0x1.6mm封裝，四腳貼片晶振，有源晶振，7050晶振，SMD晶振，時鐘振蕩器，石英晶體振蕩器。具有超小型，輕薄型，高品質，高可靠性，耐熱及耐環境等特點。應用于：儀器設備晶振，測試設備晶振，導航儀晶振，GPS定位晶振，智能家居等。

訂購熱線：86-0755-27838351

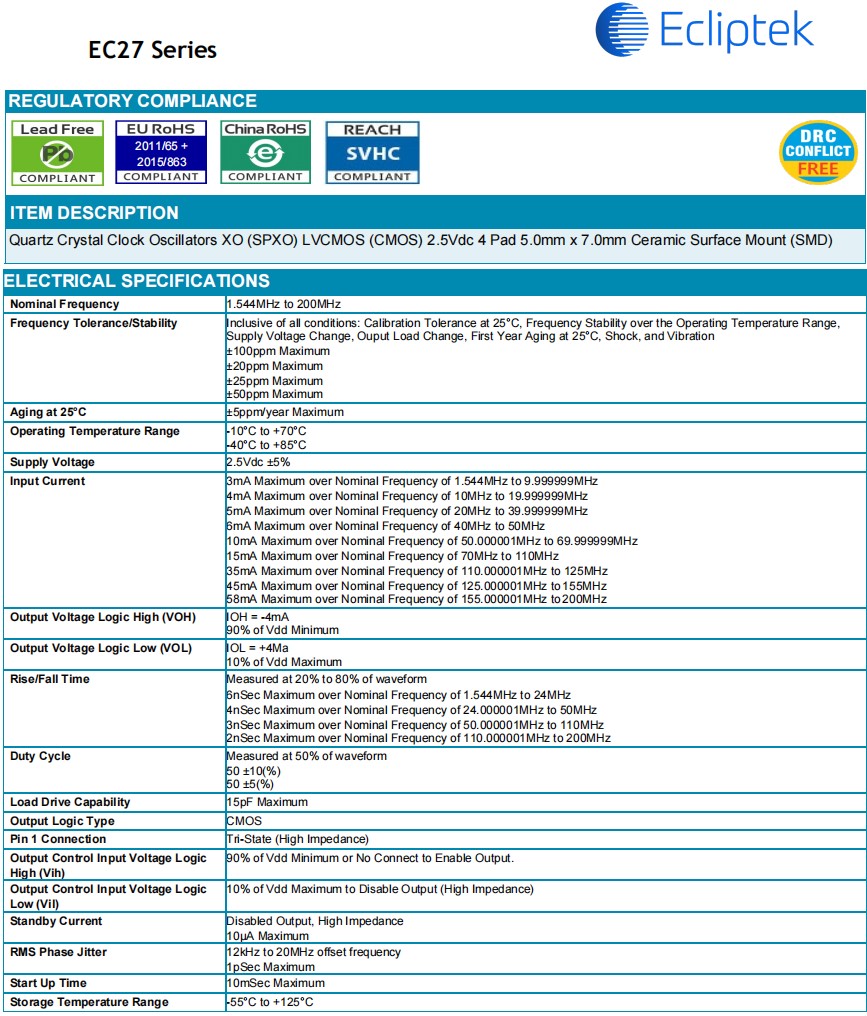

EC2745ETTS-100.000M TR,Ecliptek時鐘振蕩器,7050mm無線晶振,參數表

Nominal Frequency			100 MHz
Frequency Tolerance/Stability			Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Ouput Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±20ppm Maximum ±25ppm Maximum ±50ppm Maximum
Aging at 25°C			±5ppm/year Maximum
Operating Temperature Range			- 10°C to +70°C -40°C to +85°C
Supply Voltage			2.5Vdc ±5%
Input Current			3mA Maximum over Nominal Frequency of 1.544MHz to 9.999999MHz 4mA Maximum over Nominal Frequency of 10MHz to 19.999999MHz 5mA Maximum over Nominal Frequency of 20MHz to 39.999999MHz 6mA Maximum over Nominal Frequency of 40MHz to 50MHz 10mA Maximum over Nominal Frequency of 50.000001MHz to 69.999999MHz 15mA Maximum over Nominal Frequency of 70MHz to 110MHz 35mA Maximum over Nominal Frequency of 110.000001MHz to 125MHz 45mA Maximum over Nominal Frequency of 125.000001MHz to 155MHz 58mA Maximum over Nominal Frequency of 155.000001MHz to 200MHz
Output Voltage Logic High (VOH)			IOH = -4mA 90% of Vdd Minimum
Output Voltage Logic Low (VOL)			IOL = +4Ma 10% of Vdd Maximum
Rise/Fall Time			Measured at 20% to 80% of waveform 6nSec Maximum over Nominal Frequency of 1.544MHz to 24MHz 4nSec Maximum over Nominal Frequency of 24.000001MHz to 50MHz 3nSec Maximum over Nominal Frequency of 50.000001MHz to 110MHz 2nSec Maximum over Nominal Frequency of 110.000001MHz to 200MHz
Duty Cycle			Measured at 50% of waveform 50 ±10(%) 50 ±5(%)
Load Drive Capability			15pF Maximum
Output Logic Type			CMOS
Pin 1 Connection			Tri-State (High Impedance)
Output Control Input Voltage Logic High (Vih)			90% of Vdd Minimum or No Connect to Enable Output.
Output Control Input Voltage Logic Low (Vil)			10% of Vdd Maximum to Disable Output (High Impedance)
Standby Current			Disabled Output, High Impedance 10µA Maximum
RMS Phase Jitter			12kHz to 20MHz offset frequency 1pSec Maximum
Start Up Time			10mSec Maximum
Storage Temperature Range			-55°C to +125°C

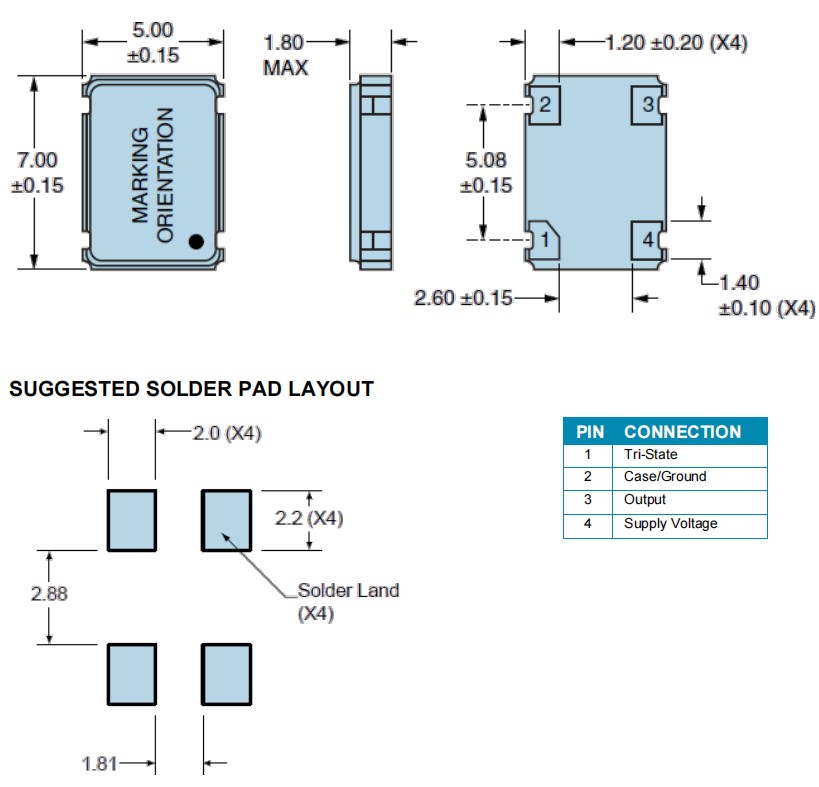

EC2745ETTS-100.000M TR,Ecliptek時鐘振蕩器,7050mm無線晶振,尺寸圖

產品編碼	品牌	型號	頻率	長	寬	高
EC2700TS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm
EC2725ETTS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm
EC2725TS-33.333M	Ecliptek晶振	EC27	33.333 MHz	7mm	5mm	1.6mm
EC2725TS-33.333M TR	Ecliptek晶振	EC27	33.333 MHz	7mm	5mm	1.6mm
EC2745ETTS-100.000M TR	Ecliptek晶振	EC27	100 MHz	7mm	5mm	1.6mm
EC2745ETTS-25.000M	日蝕晶振	EC27	25 MHz	7mm	5mm	1.6mm
EC2745ETTS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm
EC2745ETTTS-25.000M TR	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm
EC2745TS-50.000M	Ecliptek晶振	EC27	50 MHz	7mm	5mm	1.6mm
EC2745TTS-25.000M	Ecliptek晶振	EC27	25 MHz	7mm	5mm	1.6mm
EC2745TTS-50.000M TR	Ecliptek晶振	EC27	50 MHz	7mm	5mm	1.6mm
EC3700ETTTS-100.000M TR	Ecliptek晶振	EC37	100 MHz	5mm	3.2mm	1.3mm
EC5720ETTTS-25.000M TR	Ecliptek晶振	EC57	25 MHz	2.5mm	2mm	1mm
EH4925ETTS-26.000M	Ecliptek晶振	EH49	26 MHz	3.2mm	2.5mm	1.05mm
EH4945ETTTS-24.000M TR	Ecliptek晶振	EH49	24 MHz	3.2mm	2.5mm	1.05mm
EH4945ETTTS-25.000M TR	Ecliptek晶振	EH49	25 MHz	3.2mm	2.5mm	1.05mm
EH4945ETTTS-28.636363M	Ecliptek晶振	EH49	28.636363 MHz	3.2mm	2.5mm	1.05mm
EHF1300ETTS-10.000M	Ecliptek晶振	EHF13	10 MHz	20.8mm	13.2mm	5.08mm
EHH1300ETTS-10.000M	Ecliptek晶振	EHH13	10 MHz	13.2mm	13.2mm	5.6mm
EL13C7D2F-100.000M TR	Ecliptek晶振	EL13C7	100 MHz	5mm	3.2mm	2mm
EMRB62B-32.768K	Ecliptek晶振	EMRB62	32.768 kHz	2mm	1.2mm	0.6mm
EMRB63B-32.768K	Ecliptek晶振	EMRB63	32.768 kHz	2mm	1.2mm	0.6mm
EMRB85B-32.768K	Ecliptek晶振	EMRB85	32.768 kHz	1.5mm	0.8mm	0.6mm
EMRC12D2H-125.000M	Ecliptek晶振	EMRC12	125 MHz	7mm	5mm	0.85mm
