2520mm,CT25M32.0000F10V13-100,CT25M熱敏晶體,32MHZ,NKG無線晶振特點:
內置熱敏電阻100k?用于溫度測量。
貼片晶振非常適合與具有內置溫度的IC一起使用補償振蕩器電路。
高度可靠的封裝尺寸為2.5 x 2.0 x 0.8mm，帶4個焊盤。

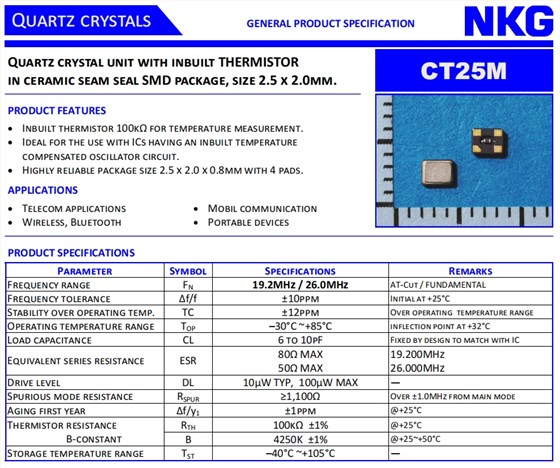

2520mm,CT25M32.0000F10V13-100,CT25M熱敏晶體,32MHZ,NKG無線晶振 參數表
| Parameter | Symbol | Specifications | Remarks | ||||||||||
| Frequency range | FN | 32.0MHz | AT-Cut / FUNDAMENTAL | ||||||||||
| Frequency tolerance | Δf/f | ±10ppm | Initial at +25°C | ||||||||||
| Stability over operating temp. | TC | ±12ppm | Over operatingtemperature range | ||||||||||
| Operating temperature range | TOP | –30°C ~+85°C | inflection point at +32°C | ||||||||||
| Load capacitance | CL | 6 to 10pF | Fixed by design to match with IC | ||||||||||
| Equivalent series resistance | ESR |
80Ω MAX 50Ω MAX |
19.200MHz 26.000MHz |
||||||||||
| Drive level | DL | 10µW TYP,100µW MAX | — | ||||||||||
| Spurious mode resistance | RSPUR | ≥1,100? | Over ±1.0MHz from main mode | ||||||||||
| Aging first year | Δf/y1 | ±1ppm | @+25°C | ||||||||||
|
Thermistor resistance B-constant |
RTH | 100k?±1% | @+25°C | ||||||||||
| B | 4250K±1% | @+25~+50°C | |||||||||||
| Storage temperature range | TST | –40°C ~+105°C | — | ||||||||||

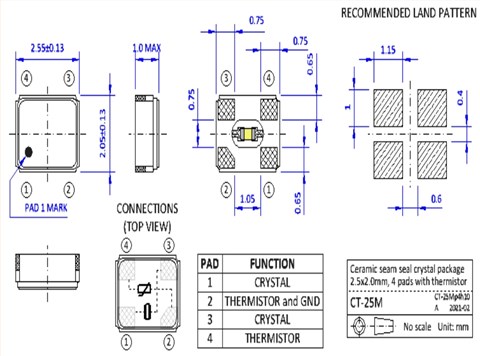

2520mm,CT25M32.0000F10V13-100,CT25M熱敏晶體,32MHZ,NKG無線晶振尺寸圖
