低抖動LVPECL或LVDS時鐘振蕩器635P3I2156M25000用于各種頻率控制設備

2023-05-31 11:31:54

美國CTS西迪斯晶振Model 635，是一款小體積晶振尺寸7050石英晶體振蕩器，178.462mg，陶瓷表面安裝封裝，低相位抖動性能，700fs最大，基本或第3泛音晶體設計，頻率范圍：10MHz至320MHz，+2.5V或+3.3V工作電壓操作，輸出使標準，磁帶和卷軸包裝，是一個低成本、高性能的時鐘振蕩器，支持差分的LVPECL或LVDS輸出差分晶振。M635采用最新的IC技術，具有優異的穩定性，低抖動，低功耗，低相位噪聲性能。應用于：存儲區域網絡，寬帶接入，SONET/SDH/DWDM，PON，以太網/GbE/SyncE，光纖通道，測試和測量，通訊設備，機頂盒，光端機，安防設備及各種頻率控制設備上。低抖動LVPECL或LVDS時鐘振蕩器635P3I2156M25000用于各種頻率控制設備

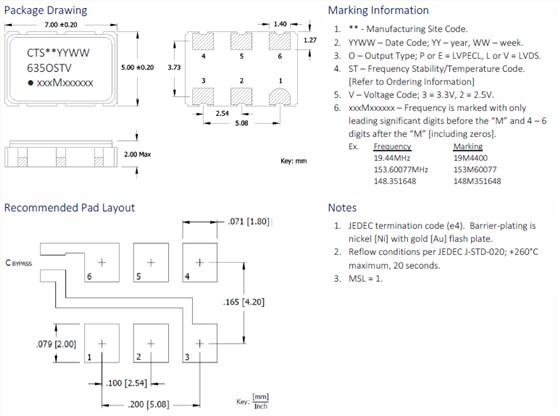

635 7050 OSC

原廠代碼 晶振廠家 型號 頻率 頻率穩定度 包裝/封裝
635P3I3025M00000 CTS晶振 635 25MHz ±50ppm 6-SMD, No Lead
635P3I2025M00000 CTS晶振 635 25MHz ±50ppm 6-SMD, No Lead
635L3I3025M00000 CTS晶振 635 25MHz ±50ppm 6-SMD, No Lead
635L3I2025M00000 CTS晶振 635 25MHz ±50ppm 6-SMD, No Lead
635P3I3050M00000 CTS晶振 635 50MHz ±50ppm 6-SMD, No Lead
635P3I3074M17580 CTS晶振 635 74.1758MHz ±50ppm 6-SMD, No Lead
635P3I3074M25000 CTS晶振 635 74.25MHz ±50ppm 6-SMD, No Lead
635P3I2050M00000 CTS晶振 635 50MHz ±50ppm 6-SMD, No Lead
635P3I2074M17580 CTS晶振 635 74.1758MHz ±50ppm 6-SMD, No Lead
635P3I2074M25000 CTS晶振 635 74.25MHz ±50ppm 6-SMD, No Lead
635L3I3050M00000 CTS晶振 635 50MHz ±50ppm 6-SMD, No Lead
635L3I3074M17580 CTS晶振 635 74.1758MHz ±50ppm 6-SMD, No Lead
635L3I3074M25000 CTS晶振 635 74.25MHz ±50ppm 6-SMD, No Lead
635L3I2050M00000 CTS晶振 635 50MHz ±50ppm 6-SMD, No Lead
635L3I2074M17580 CTS晶振 635 74.1758MHz ±50ppm 6-SMD, No Lead
635L3I2074M25000 CTS晶振 635 74.25MHz ±50ppm 6-SMD, No Lead
635P3I3100M00000 CTS晶振 635 100MHz ±50ppm 6-SMD, No Lead
635P3I3125M00000 CTS晶振 635 125MHz ±50ppm 6-SMD, No Lead
635P3I3133M00000 CTS晶振 635 133MHz ±50ppm 6-SMD, No Lead
635P3I2100M00000 CTS晶振 635 100MHz ±50ppm 6-SMD, No Lead
635P3I2125M00000 CTS晶振 635 125MHz ±50ppm 6-SMD, No Lead
635P3I2133M00000 CTS晶振 635 133MHz ±50ppm 6-SMD, No Lead
635L3I3100M00000 CTS晶振 635 100MHz ±50ppm 6-SMD, No Lead
635L3I3125M00000 CTS晶振 635 125MHz ±50ppm 6-SMD, No Lead
635L3I3133M00000 CTS晶振 635 133MHz ±50ppm 6-SMD, No Lead
635L3I2100M00000 CTS晶振 635 100MHz ±50ppm 6-SMD, No Lead
635L3I2125M00000 CTS晶振 635 125MHz ±50ppm 6-SMD, No Lead
635L3I2133M00000 CTS晶振 635 133MHz ±50ppm 6-SMD, No Lead
635P3I3152M52000 CTS晶振 635 152.52MHz ±50ppm 6-SMD, No Lead
635P3I3156M25000 CTS晶振 635 156.25MHz ±50ppm 6-SMD, No Lead
635P3I2152M52000 7050晶振 635 152.52MHz ±50ppm 6-SMD, No Lead
635P3I2156M25000 CTS晶振 635 156.25MHz ±50ppm 6-SMD, No Lead
635L3I3152M52000 CTS晶振 635 152.52MHz ±50ppm 6-SMD, No Lead
635L3I3156M25000 CTS晶振 635 156.25MHz ±50ppm 6-SMD, No Lead
635L3I2152M52000 CTS晶振 635 152.52MHz ±50ppm 6-SMD, No Lead
635L3I2156M25000 CTS晶振 635 156.25MHz ±50ppm 6-SMD, No Lead
635P3I3077M7600 CTS晶振 635 77.76MHz ±50ppm 6-SMD, No Lead
635P3I3155M5200 CTS晶振 635 155.52MHz ±50ppm 6-SMD, No Lead
635P3I3212M50000 CTS晶振 635 212.5MHz ±50ppm 6-SMD, No Lead
635P3I2212M50000 CTS晶振 635 212.5MHz ±50ppm 6-SMD, No Lead
635L3I3212M50000 CTS晶振 635 212.5MHz ±50ppm 6-SMD, No Lead
635L3I2212M50000 CTS晶振 635 212.5MHz ±50ppm 6-SMD, No Lead
低抖動LVPECL或LVDS時鐘振蕩器635P3I2156M25000用于各種頻率控制設備，差分晶振有不同的輸出信號,LV-PECL,LVDS,HCSL,是差分晶體振蕩器通用的輸出信號.一般為六腳晶振,能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性,具有高性能,低功耗,低噪聲,低抖動,低損耗等特點。被廣泛用于通訊設備,機頂盒,光端機,安防設備及各種頻率控制設備。
